About the process: In vertical machining centers, in addition to the grinding process of the glass, straight, countersunk, variable diameter holes can also be drilled. Glass moves vertically, abrasive profiled discs run-in along the edge of the glass. Vertical CNC machining centers, which are also used for drilling holes, can simultaneously drill holes of different diameters with or without chamfer

Vertical Drill
Vertical Drill
Vertical Drill
1
/

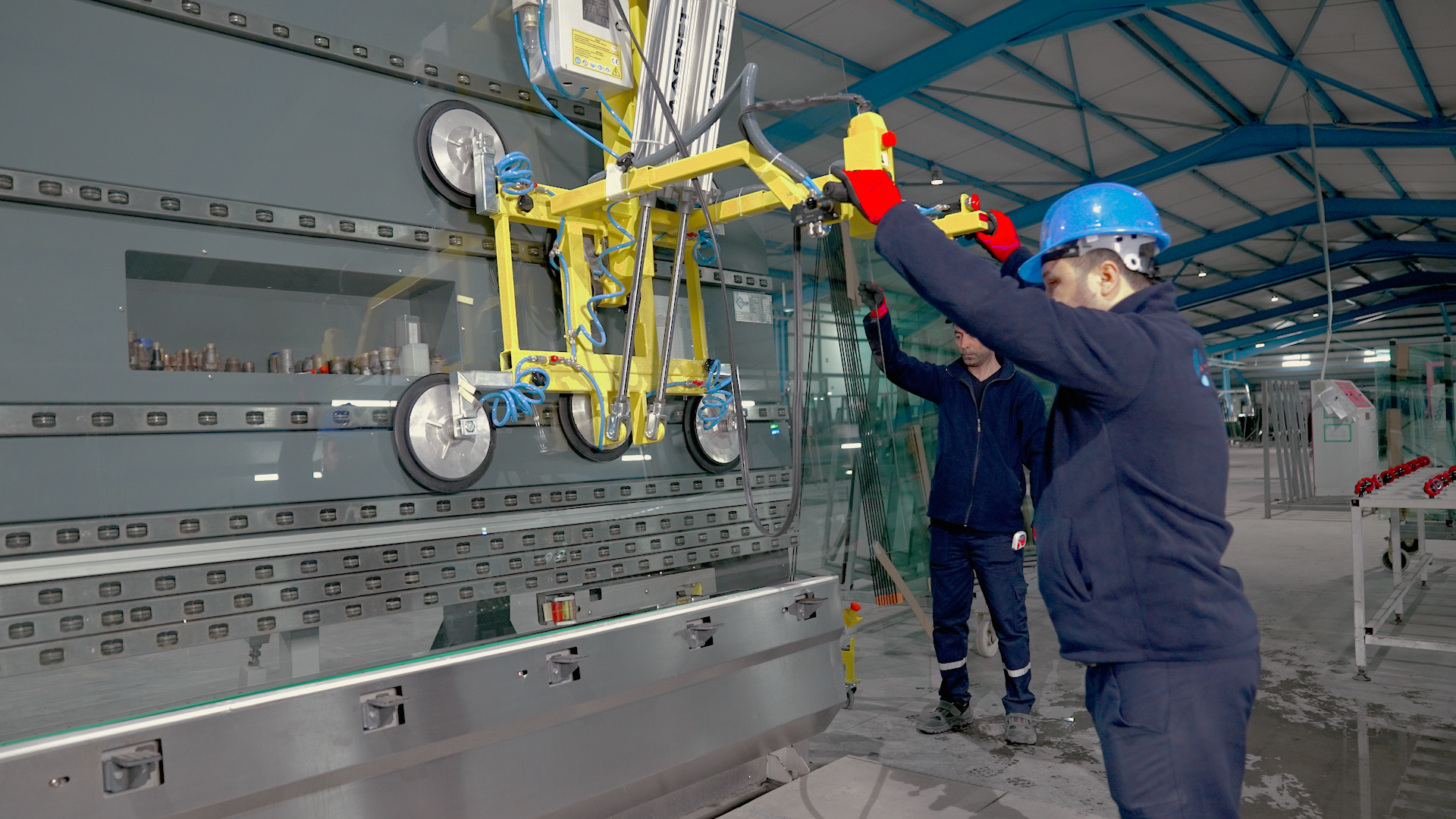

Machine & Processing Pictures

Technical Explanation: In ALCAM’s vertical CNC machining centers, holes, doorlocks, hinge details, vent, notch, grinding processes can be performed for glass with a maximum size of 5000×2600 mm and minimum 600 mmx250 mm and thickness between 4-19 mm.
